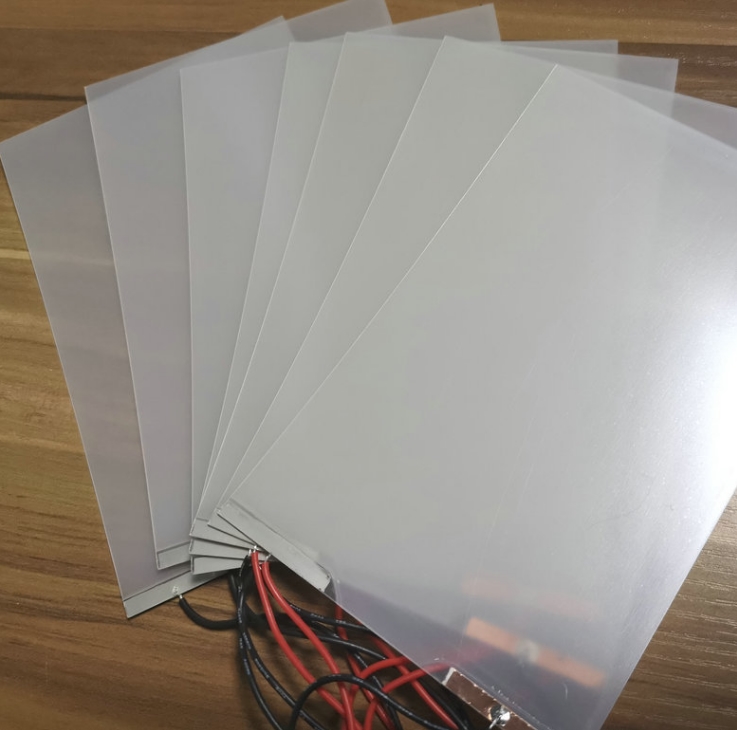

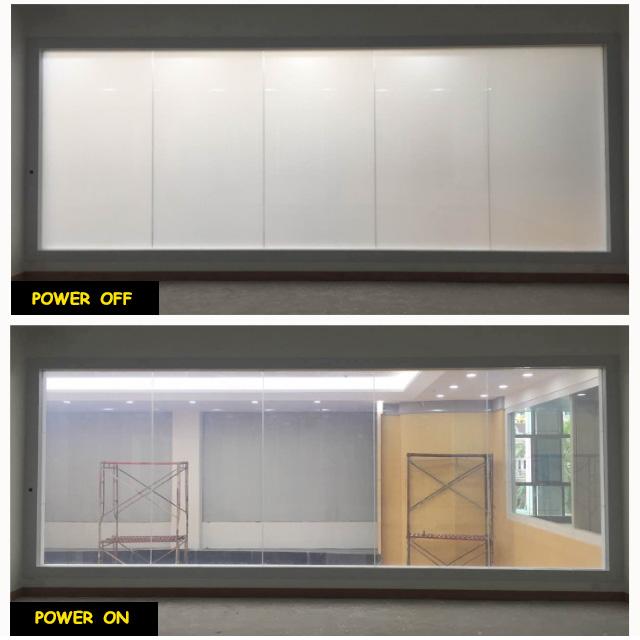

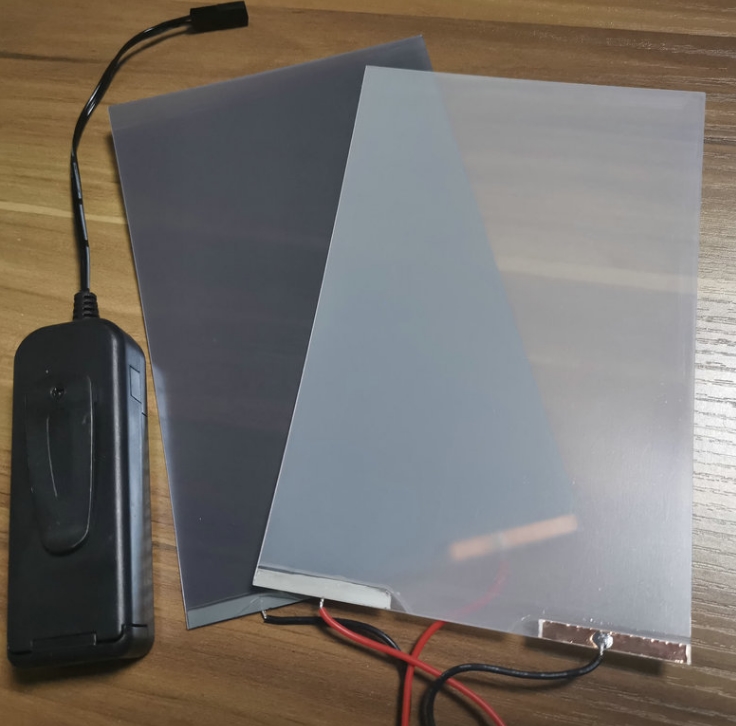

Smart PDLC glass film is a kind of product based on membrane technology. It mixes rod-like polymer liquid crystal with prepolymer and adheres to transparent conductive substrates, so that it has the characteristics of liquid and crystal as well as remarkable photoelectric characteristics.Without electric field, its molecular disorder arrangement is in an opaque state. Under the action of electric field, its molecules are arranged orderly along the direction of electric field, making it transparent. By controlling the electric field, it can make the transition between transparent and opaque states.
Aplication:
1.Operation department,slap-up office/meeting room
2.Special ward / operation room of hospital,monitoring room
3.Classical bathroom / cars,Lorries,luxury yacht
4.Large-scale projection screens
5.Vehicls's window

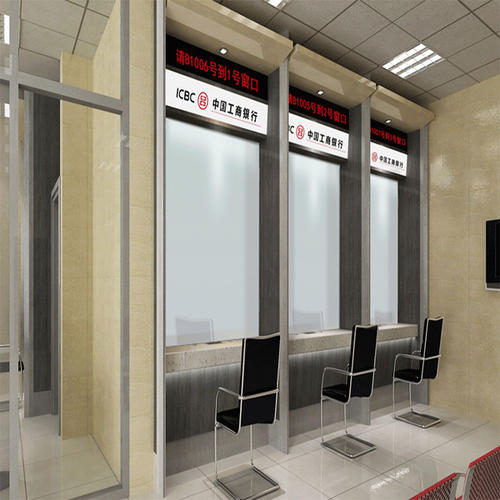

6.Jewelry shop,museum,insurance counter
7.All kinds of places which need day lighting and privacy
Optical Properties | Visible Light Transmission | ON | more than 80.5% |
OFF | more than 4% | ||
Haze | ON | less than 5% | |
OFF | more than 91% | ||
Visual Angle | ON | 160 degree | |
UV Blocking | ON/OFF | more than 99% | |
Infrared blocking | ON/OFF | more than 60% | |
Electrical Properties | Operating Voltage | On | 60 volts A.C. |
Power Consumption | On | Less than 5W/M2 | |
Switching Time | ON to OFF | Tr.20ms | |
OFF to ON | Td.200ms | ||
Specification | Thickness | 0.38mm | |
Adhesive property | 7g/cm2 | ||
Other index | Working Temperature | –30~50 °C | |
Storage Temperature | –30~70 °C | ||
Off and on time | More than 10 million time | ||
Life time | More than 15 years | ||
Controlling Ways | Switch, voice, remote control, remote network control are available, any combination can be worked out according to customer request. | ||
